Product Name
|

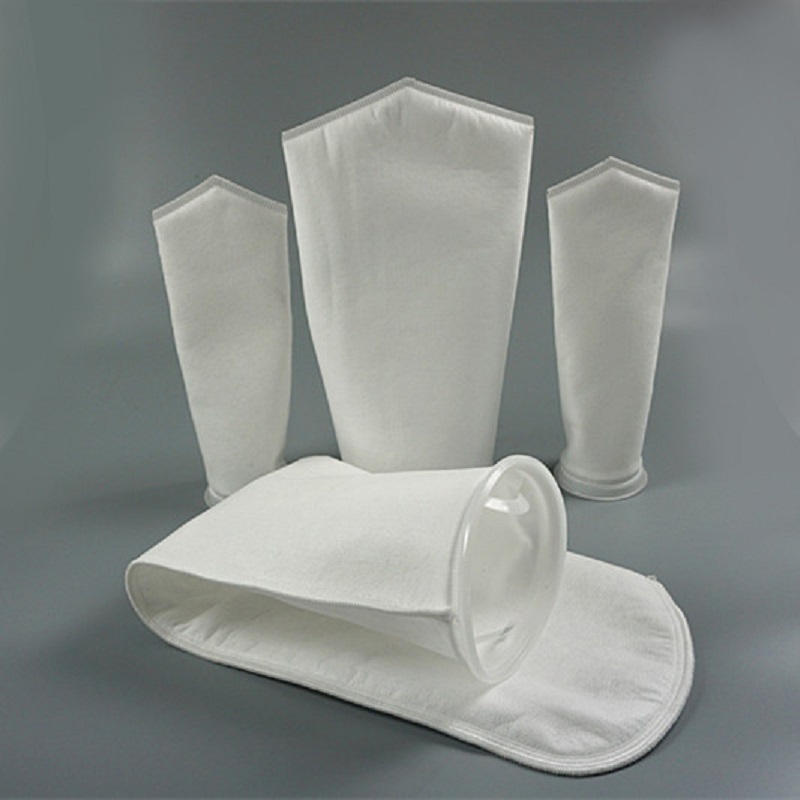

Liquid Filter Bags
|
||
|
Material Available
|
Nylon (NMO)
|
Polyester (PE)
|
Polypropylene (PP)
|
|
Maximum Operating Temperature
|
275-300° F (135-149° C)
|
275-325° F (135-162° C)
|
200-220° F (93-104° C)
|
|
Micron Rating (um) |
25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um
|
0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300
|
0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300
|
|

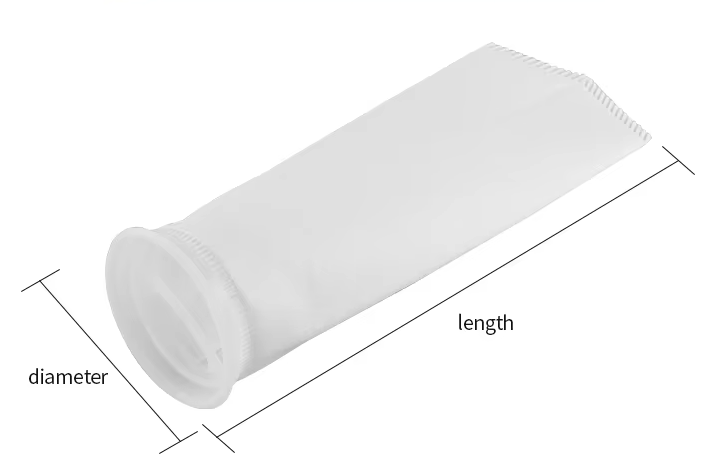

Size |
1 #: 7" x 16" (17.78 cm x 40.64 cm)2 #: 7" x 32" (17.78 cm x 81.28 cm)
3 #: 4" x 8.25" (10.16 cm x 20.96 cm) 4 #: 4" x 14" (10.16 cm x 35.56 cm) 5 #: 6 " x 22" (15.24 cm x 55.88 cm) Customized size |
||
|
Filter Bag Area(m²) / Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter 4#: 0.09 m² / 2.5 Liter 5#: 0.22 m² / 8.1 Liter |
||
|
Collar Ring
|
Polypropylene ring/Polyester ring/Galvanized steel ring/Stainless steel ring/Rope
|
||
|
Remarks
|
OEM: supportCustomized item: support.
|
||
|
The Chemical Resistance Of Liquid Filter Bag
|
|||
|
Fiber Material
|
Polyester (PE)
|
Nylon (NMO)
|
Polypropylene (PP)
|
|
Abrasion Resistance
|
Very Good
|
Excellent
|
Very Good
|
|
Weakly Acid
|
Very Good
|
General
|
Excellent
|
|
Strongly Acid
|
Good
|
Poor
|
Excellent
|
|
Weakly Alkali
|
Good
|
Excellent
|
Excellent
|
|
Strongly Alkali
|
Poor
|
Excellent
|
Excellent
|
|
Solvent
|
Good
|
Good
|
General
|
