A washout booth plays a vital role in ensuring an efficient screen printing preparation and reclaiming area.
Proper handling and disposal of inks, chemicals, and emulsion residues are essential in this process.
If not managed correctly, solid waste can clog plumbing and septic systems and may also cause serious environmental damage.
A washout booth is a key component in maintaining an efficient screen printing preparation and reclaiming area.
Correct disposal of inks, chemicals, and emulsion residues is essential to proper shop operation.
If not properly managed, solid waste can damage plumbing and septic systems and may also pose serious environmental risks.

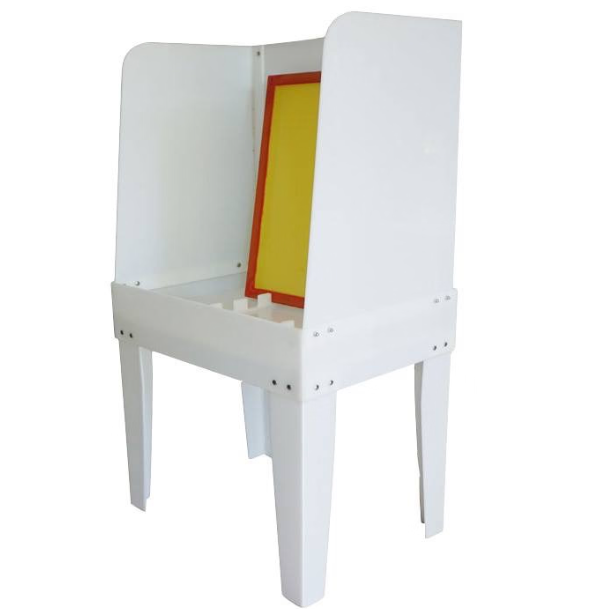

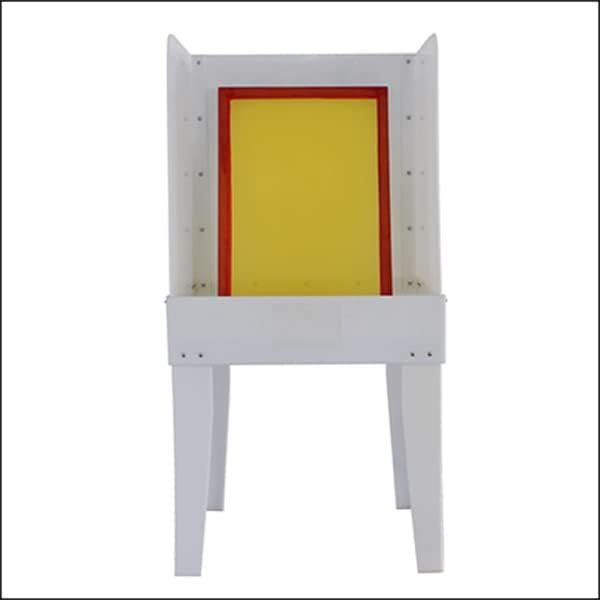

Our washout booths offer excellent value for screen printers who want to clean screens in a sanitary, controlled environment without making a large capital investment.
Their compact footprint makes them an ideal solution for small shops or facilities with limited space.
Despite their space-saving design, our washout booths are full-size units constructed from 5/16-inch semi-transparent polypropylene.
They are strong, durable, and engineered to deliver reliable performance over many years of use.
Our factory produces two available versions.
The mini version is a compact, lightweight, and cost-effective booth designed to sit conveniently on a table or countertop, accommodating standard screens up to 22" × 27".
A perforated drain and bottom-mounted fitting allow for quick connection to the included drain hose, which can be directed to a container or filtration system of your choice.
This design allows even the smallest shop or home studio to use a professional-grade, well-built washout sink to streamline workflow and improve overall efficiency.

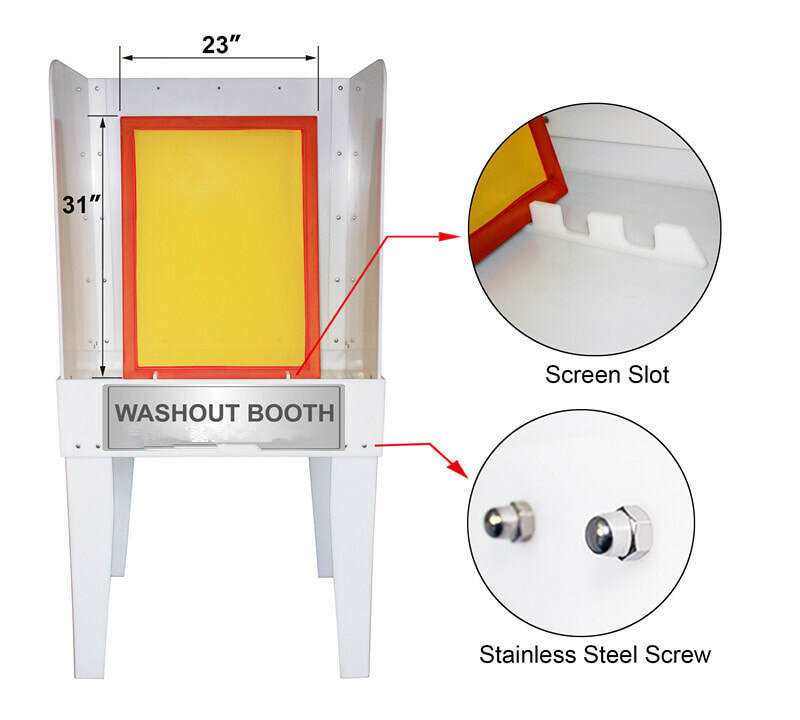

The standard version offers increased capacity, holding screens up to a standard 23" × 31".
|
Item
|
Value
|
|
Dimensions
|
32”W X 24”D X 64”H
|
|
Thickness of Material
|
5/16”
|
|
Max Frame Size
|
23” X 31”
|
|
Packing Size
|
920 X 900 X 300 MM
|
|
Packing Weight
|
34.00 KGS
|
