Most screen printing squeegees are manufactured from PU (polyurethane) material. Based on factors such as the characteristics of the printed substrate, the precision requirements of the printed image, and variations in printing methods, squeegees with different hardness levels and cross-sectional profiles can be selected accordingly.
The hardness of a squeegee specifically refers to the surface hardness of the rubber. It is typically measured using the Shore hardness scale, with common options including 60, 65, 70, 75, 80, and 85 Shore A.
In terms of cross-sectional shape, squeegee blades are generally available in several standard designs, such as right-angle profiles and sharp-angle profiles, each suited to different printing applications.
Common specifications include sizes such as 50 × 9 mm, 40 × 7 mm, and 25 × 5 mm, among others. Regardless of the specific type or size, all squeegee rubber strips can be easily trimmed using dedicated rubber strip scissors, resulting in a clean, smooth, and glossy cutting edge.
|
Product Name
|
Squeegee cutter |
|
|
Description
|

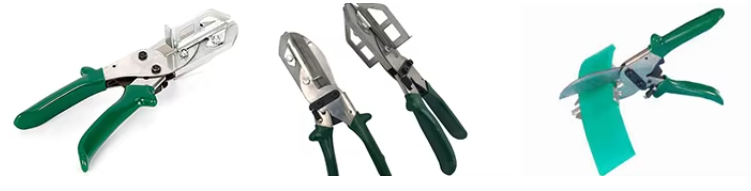

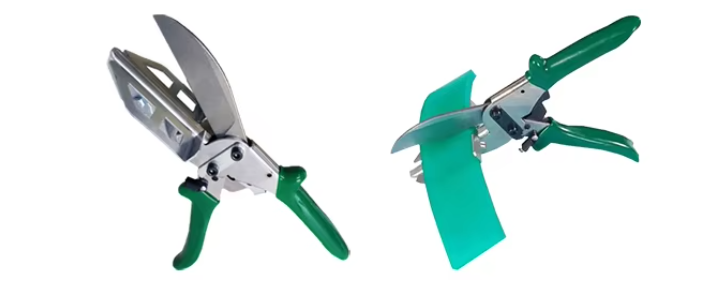

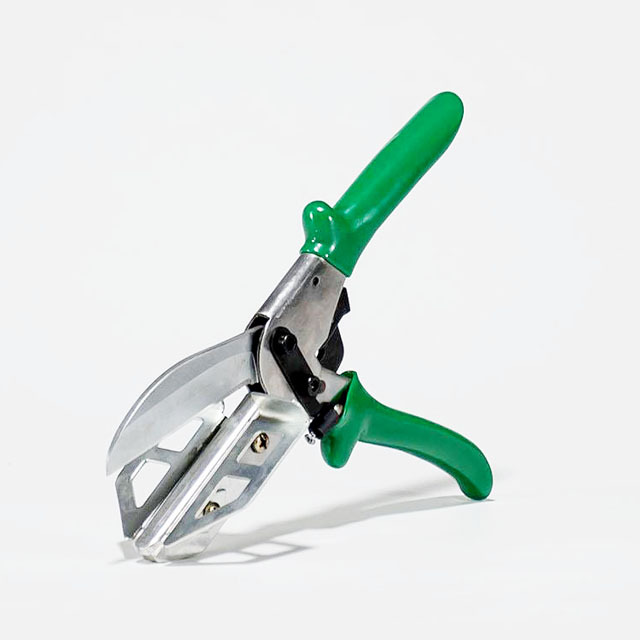

The Squeegee Cutter （Scissor） is designed to allow the customer to trim the standard 3/8"x 3/8"squeegee to a custom length for use on the production floor. The Squeegee Cutter can be used with other sizes of squeegee as well.
|
|
|
Feature
|
Rugged and reliable, the Squeegee Cutter has an easy-to-replace cutting blade. Additional blades are stored in the handle.
|
|
|
Safe to use and taking up very little work space, the Squeegee Cutter is an excellent way to maximize usage of squeegee material.
|
||
|
The thickest can cut 20mm
|
||
|
Parameter
|
Scissors knife length
|
100mm
|
|
Scissors knife width
|
35mm
|
|
|
Total length of scissors
|
240mm
|
|
|
Gross Weight
|
1 kg
|
|
