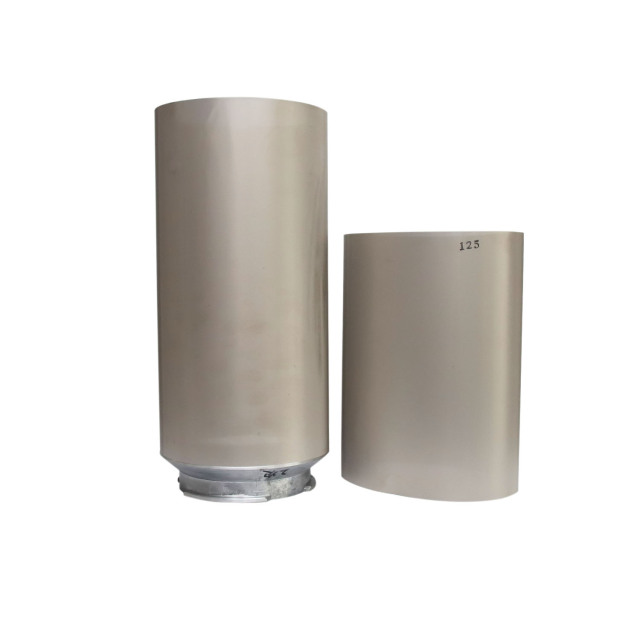

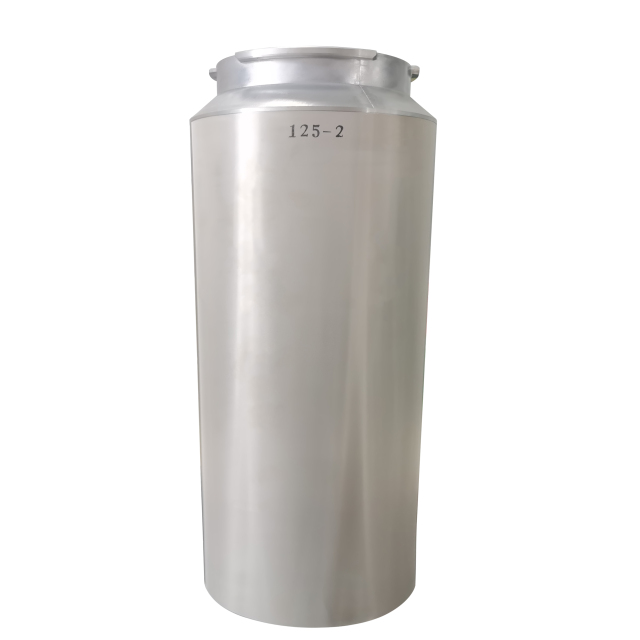

Standard Nickel Screen
|
|||
|
Repeat(mm)
|
530/640/688/725/819/914/1018
|
||
|
Length(mm)
|
1410-3500
|
||
|
MESH COUNT
|
THICKNESS(um)
|
OPEN AREA(%)
|
DIAMETER(um)
|
|
25
|
160-165
|
30-32
|
720
|
|
40
|
145-150
|
28-30
|
318
|
|
60
|
115-120
|
18-20
|
161
|
|
70
|
110-115
|
16-18
|
131
|
|
80
|
110-155
|
16-18
|
105
|
|
100
|
105-115
|
15-17
|
74
|
|
105
|
105-115
|
15-17
|
94
|
|
125
|
100-105
|
14-16
|
79
|
|
125V
|
100-105
|
14-16
|
79
|
|
135
|
100-105
|
13-15
|
72
|
|
135V
|
100-105
|
13-15
|
72
|
|
155
|
100-105
|
12-13
|
60
|
|
165
|
100-105
|
12-13
|
71
|
|
All"V type screen, the hole arrangement angle is 45°C, especially suitable for geometry printing, eg-square and line, all screen can be repeatedly used for 5-7 times.
|
|||
|
Wallpaper Nickel Screen
|
||
|
Repeat(mm)
|
640/914
|
|
|
Length(mm)
|
1410-3500
|
|
|
MESH COUNT
|
THICKNESS(um)
|
OPEN AREA(%)
|
|
40LR
|
125
|
20
|
|
60LR
|
125
|
10.5
|
|
70LR
|
125
|
12.5
|
|
25SP
|
150
|
50
|
|
40SP
|
150
|
38
|
|
80SP
|
150
|
25
|
|
100SP
|
150
|
20
|
|
125SP
|
150
|
15 ABOVE
|
|
40CH
|
150
|
22
|
|
40CH
|
200
|
38
|
|
50CH
|
200
|
20
|
|
50CH
|
200
|
23
|
|
30HX
|
300
|
30 ABOVE
|
|
40HX
|
300
|
30
|
|
60HX
|
160
|
10
|
|
SP Screen: Big open area and relatively less hole, especially suitable for decoration coating, dot printing
CH Screen: Suitable for medium or thicker printing LR Screen: Closed drawing coating, light coating, artificial leather, wall paper and floor |
||
|
High Open Area Screen
|
|||
|
REPEAT(mm)
|
640/819/914/1018
|
||
|
LENGTH(mm)
|
1410-3500
|
||
|
MESH COUNT
|
THICKNESS(um)
|
OPEN AREA(%)
|
DIAMETER(um)
|
|
125HO
|
115-120
|
17-18
|
/
|
|
155HO
|
105-110
|
13-14
|
/
|
|
Special 125&155 mesh screen advantages
1.125 Mesh open area can reach 18%, 155 Mesh open area can reach 14%, will save 19% dyestuff 2.Thickness can reach 115 μm, Screen are more durable, can be stripped And re-used for 7 to 8 times 3.Better brittleness, not easy to be broken off after baked at 200°C for 2 hours in the polymerizing machine. 4.Printing machine running speed improved, Pulp permeability improved 20-30%,so have better Productive efficiency. 5.Vibration is less than 0. 3mm on the engraving machine, So can ensure the accuracy of print registration and color Evenness 6.Particularly suitable for wax and wallpaper printing special industries. 7.Can replace(even exceed )125 mesh or special screen made in Europe. |
|||
|
Blanket Speical Nickel Screen
|
|||
|
REPEAT(mm)
|
1206-1280-1320-1350-1450-1500-1570-1600-1680-2000-2412
|
||
|
LENGTH(mm)
|
1410-3050
|
||
|
MESH COUNT
|
THICKNESS(um)
|
OPEN AREA(%)
|
DIAMETER(um)
|
|
60
|
180
|
18
|
161
|
|
80
|
180
|
18
|
161
|
|
GD Nickel Scren
|
|||
|
REPEAT(mm)
|
640
|
||
|
LENGTH(mm)
|
1410-3500
|
||
|
MESH COUNT
|
THICKNESS(um)
|
OPEN AREA(%)
|
DIAMETER(um)
|
|
135ED
|
120
|
22
|
88
|
|
165ED(45°)
|
115
|
19
|
67
|
|
165ED(60°)
|
115
|
19
|
67
|
|
195ED
|
115
|
16
|
51
|
|
195ED
|
115
|
19
|
54
|
|
215ED
|
110
|
15
|
46
|
|
Feature: With high density-big hole, elastic, blockage-proof feature, will increase the printing speed reduce the printing cost,
improve the efficiency it' s the highest quality screen in the world through technology to get best printing result and reduce dyestuff consumption,especially used for fine printing. |
|||
